Welcome to our 80 meter photo gallery
Survivor = "Maximizing gain while minimizing losses"

We decided to take photos of our 80 meter and 40 meter antenna's while being  put up on a 10 foot section of antenna mast. Any mast or pipe will do as long as its not over 1.25 inches (31 1SM) in diameter.


To look at the various models  and other products click here: Products.

To read more about the design click here: Antenna design.   Installation Instructions

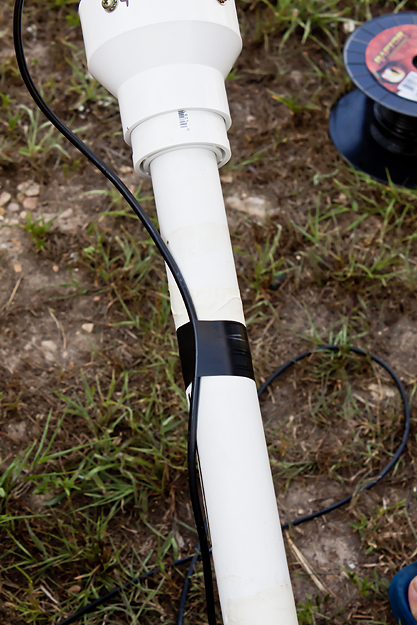

Here we're getting the 80 meter pole ready. All pole mounts are on a 5 ft. section of pvc pipe with adapters for the version to be mounted. I'm mounting the antenna with screws to the mast mount. The electrical tape on the pole is there to hold the coax and prevent tension on the cable as it hangs down.

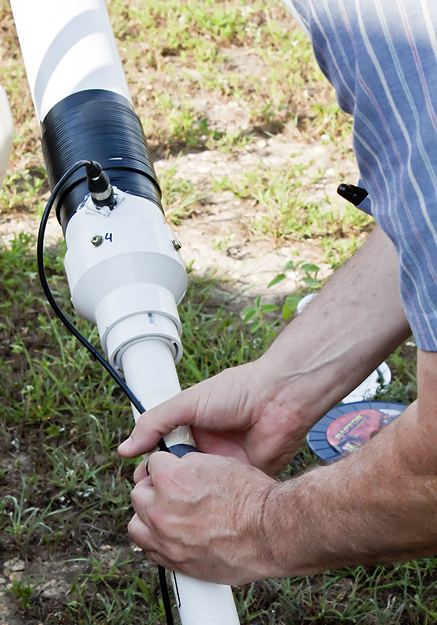

Notice the number for alignment to both parts. The black stuff on the pl259 is 'coax-seal' brand sealant but you can use silicone also.

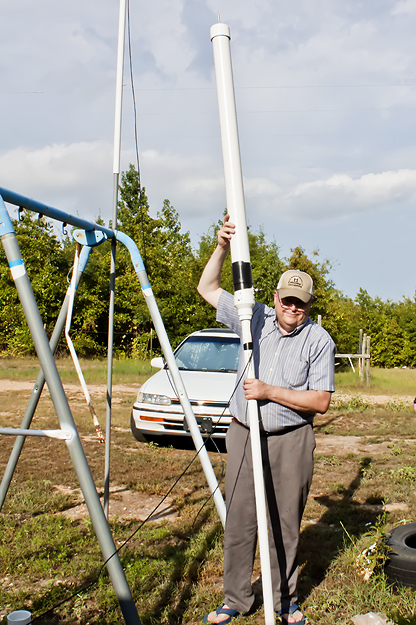

Here we are ready to put it on the mast.
