Welcome to our photo gallery 80 Meter page 3
Survivor = "Maximizing gain while minimizing losses"

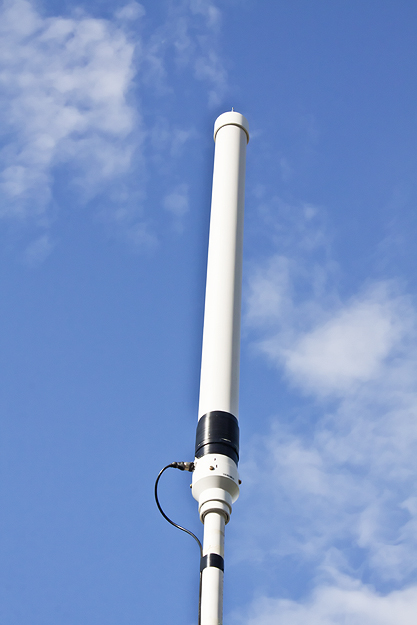

We decided to take photos of our 80 meter and 40 meter antenna's while being  put up on a 10 foot section of antenna mast. Any mast or pipe will do as long as its not over 1.25 inches (31 1SM) in diameter. Here you can see the base mounting system.


To look at the various models  and other products click here: Products.

To read more about the    Installation Instructions

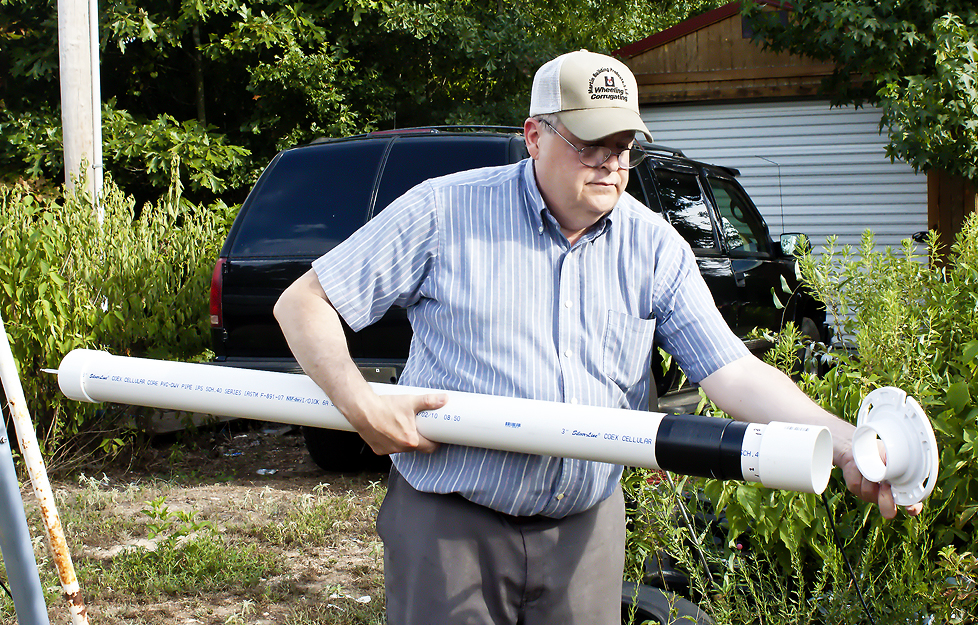

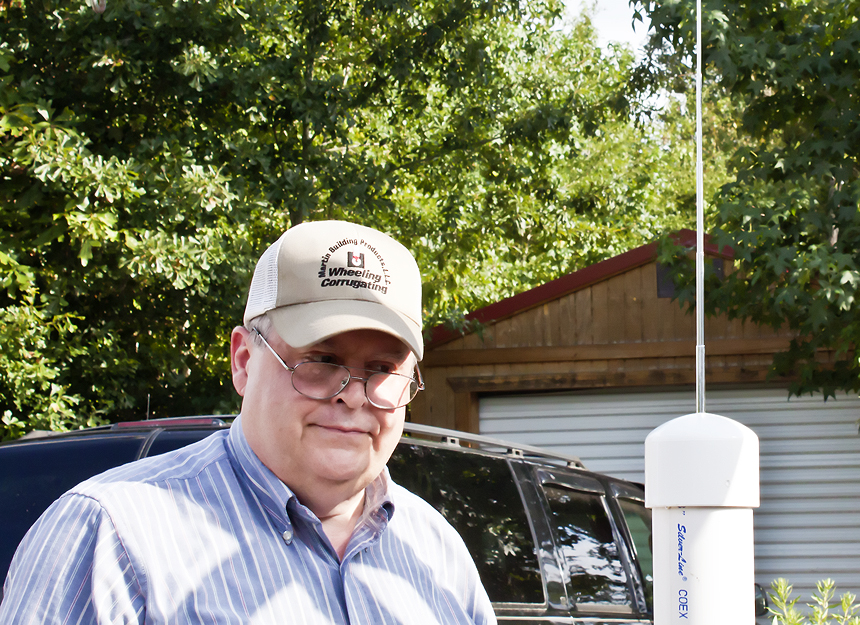

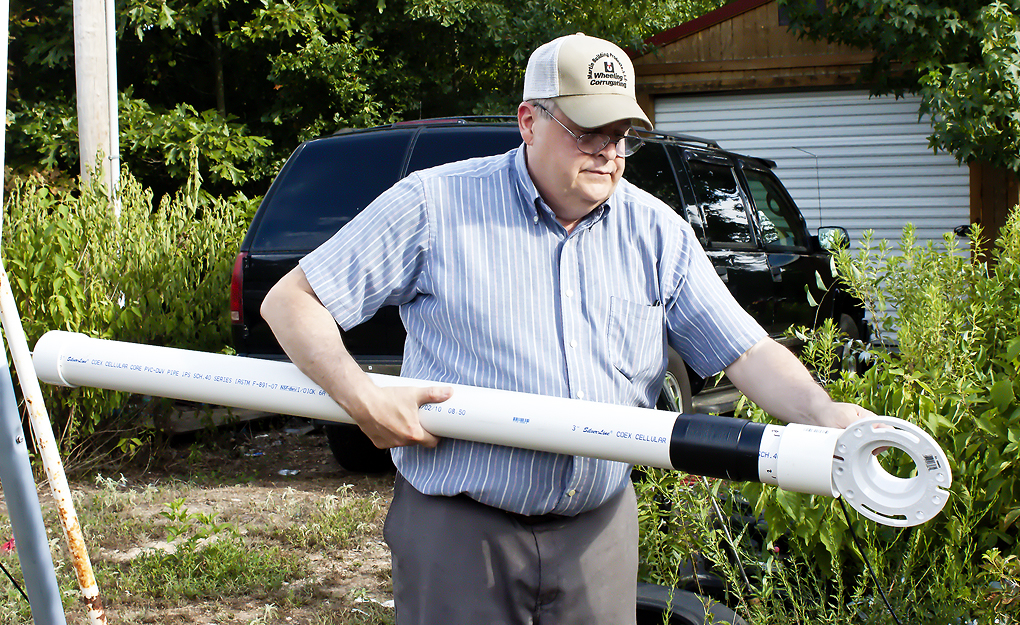

Here it is with the base mount and adaptor. Each version has its own adaptor size. Sliding the adaptor coupler on. And now the base plate. Mounting screws go into the adapter to hold the antenna to it. Here it is with me adjusting the whip for best swr in the section of the band I want to use. A tuner will let it easily work the whole band.* Please Note: These antennas WILL NOT WORK setting on the ground! They must be at least 5 feet above the ground and its recommended to be 10 feet up. So if your inside a building, the floor should be at least 5 feet above the ground or metal objects. It was hot that day and I should have smiled more :) I have talked all over the U.S.A. with this setup. PLEASE NOTE: THE TELESCOPING WHIP IS NO LONGER USED.. Thanks for visiting. Use the contact link to email me anytime. KE4LH
