Welcome to our photo gallery 40 Meter page 2
Survivor = "Maximizing gain while minimizing losses"

We decided to take photos of our 80 meter and 40 meter antenna's while being put up on a 10 foot section of antenna mast. Any mast or pipe will do as long as its not over 1.25 inches (31 1SM) in diameter.

To look at the various models  and other products click here: Products.

To read more about  Installation Instructions

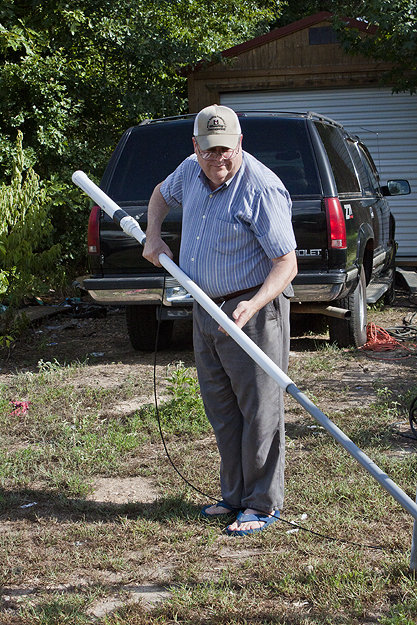

Here I'm sliding the antenna onto a 10 ft. section of 1 inch mast.

Here we go, its all the way down the mast now. Notice a small bolt sticking up. This is the stop for the mast and can be removed and you can drill your mast and re-insert the bolt thru both the mast and pole if you like. I don't, but you might want to.

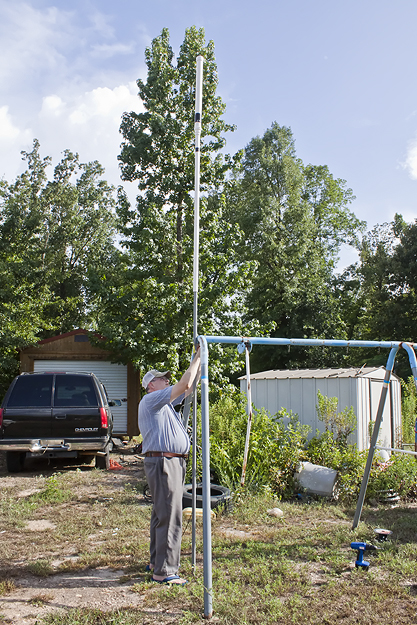

Standing it up. All of this only takes a few minutes and you're ready to go on the air. It makes a great emergency antenna too.

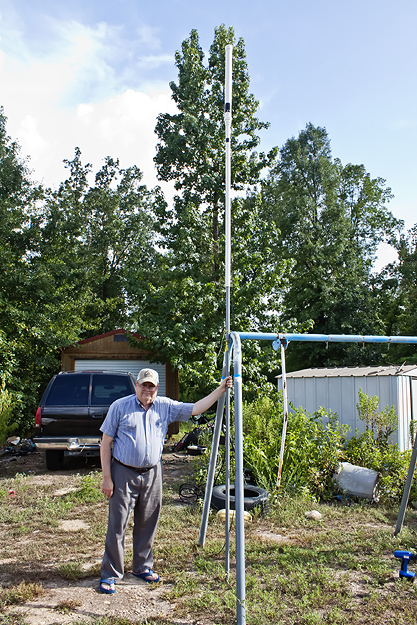

There we are, tying it off with wire and I'm done.

I've worked all over the World with this very setup.

Here is a picture of the choke at the end of the delay line. These are integral parts.  Note that I don't use this kind of choke anymore.  All new antennas are shipped with a 1:1 Balun in a waterproof box.

The next page shows the 40 meter antenna and its floor mount.
